4 levels
Customise your tool
Print your company logo or customised lettering on the tools you want.
All individualisationsCSV 10 – AMP Superseal 1.5 mm
New

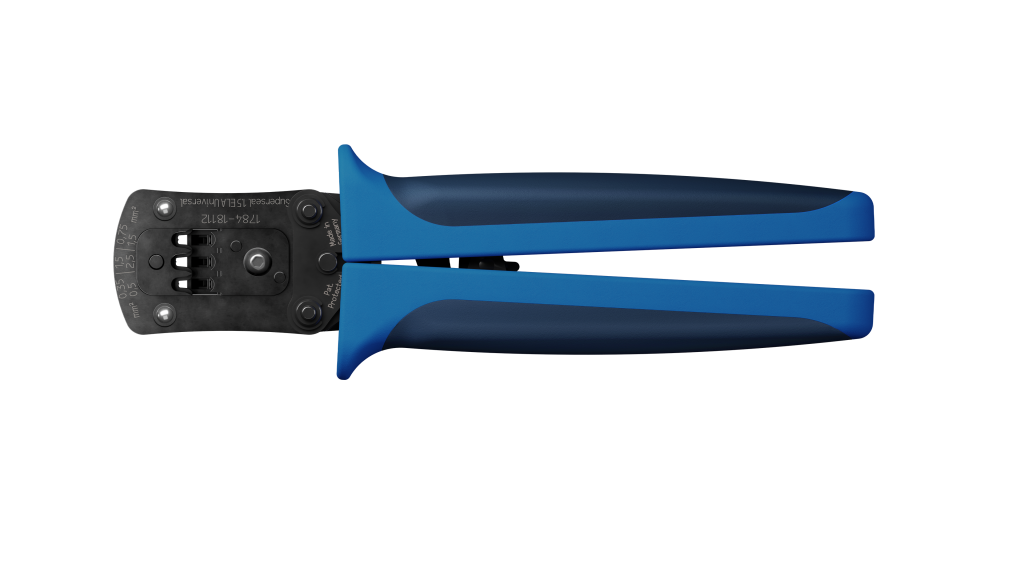

Modular crimping tool system CSV 10
Crimping tool for AMP Superseal 1.5 mm connectors and MINI MIC SRS family. Ideal for automotive, commercial vehicles, and electronic control systems where secure, watertight connections are required.
Combine individual parts
All individual parts can be precisely matched to the requirements and combined to create a customized repair solution.
Basic handle CS10K-Vario
1181-83208

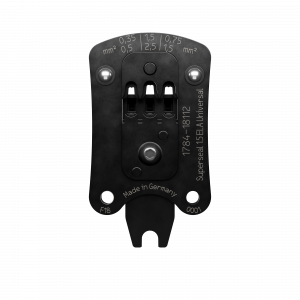

Tool head SuperSeal 1.5 ELA Universal
1784-18112
Compatible with AMP Superseal 1.5 mm Series | MINI MIC SRS:
- 183024
- 183025
- 183035
- 183036
- 282109
- 282110
- 282403
- 282404
- 282465
- 282466
New development
tailored to your processing requirementsFeatures
This tool is made for these applications
- AMP Superseal 1.5 mm Series | MINI MIC SRS crimp terminals
That is particularly
- The locator places your connector exactly where you need it! Installation is faster and safer.
- Stay as flexible as possible. Thanks to the tool-free tool head change, you are quickly ready for the next repair.
- Everything in the right place. The linear crimping movement ensures that the connector wings roll in perfectly.
- Customized design of tool kits for your daily work is possible.
- Benefit from the price advantage of changeable tool heads.
These functions make crimping more convenient
- Tool lies comfortably in the hand thanks to soft handles with anti-slip protection.
Further advantages offered by our Made in Germany standard
- The integrated guide makes the replacement of tool heads fast, error-free and always delivers reliable crimping results.
- Always a compliant crimp - the positive lock ensures this. Can be unlocked in the event of incorrect operation.
- Manufactured from special steel, specially hardened and tempered parts - quality that lasts.
- No unnecessary play within the individual parts thanks to precise manufacturing, resulting in maximum reliability.
- Tool is optimally set at the factory. It is not possible or necessary to adjust the crimping force.
Technical data
- Crimping range
-
0,35 to 0,5 mm²
1,5 to 2,5 mm²
0,75 to 1,5 mm² - Crimp shape
- B-Crimp
- Dimensions (length x width)
- approx. 195 mm x 37 mm (Tool head mounted on basic handle)
- Weight
- approx. 308 g (Tool head mounted on basic handle)
Your strong trademark
- WEZAG handtools are available exclusively as white label products. No additional competition from us as a manufacturer's brand!
- Handle colors can be customized. Choose the right color from our standard color range.
- Customizable lettering. With your logo and other information such as item number and name.
- All products are "Made in Germany".
FAQs
Who is our range aimed at?
Our range is aimed at dealers with their own brand or who wish to establish one, as well as OEMs who wish to sell high-quality cable processing tools under their own name.
Are the tools available from stock?
No. As we only produce private labels, we manufacture to order. Entirely according to your requirements and without stock of finished products.
What are the purchase quantities?
The minimum order quantity usually starts at 10 pieces per item. This may vary slightly depending on the product type and degree of customization. Please contact us.
Can I also order the products without a label?
Yes. You decide how your product is delivered: neutral, with your logo, with individual packaging or completely reduced. Just as it suits your brand image.
Do you also support the development of a private label?
Yes. If you wish, we can support you right from the start. With suitable product suggestions, customization options and expertise from over 76 years of experience.
What customization options are available?
From laser marking to customized packaging, we offer various options for marking and brand presentation. Together we can design your dream tool.
How long are the delivery times?
As we manufacture to order, the delivery time depends on the scope and degree of customization. As a rule, it is 6-8 weeks after approval.
Where are the products manufactured?
Our tools are produced exclusively in our factory in Germany – with the highest standards of precision, quality and function.
Is there sales support?
Yes. With our crimping academy, we can train your team in the use of our tools on request, for a confident sales appearance. We are also happy to help you with your trade fair activities.
Can I also buy your tools as an end customer?
Our products are available from our private label partners. However, if you are looking for a specific tool, we will be happy to help you and provide you with suitable sources of supply.
