CS 8 Modular Indent Crimping Tool System

For machined pin and socket contacts as well as circular connectors conforming to MIL or equivalent standards. Application-specific positioners allow the tool platform to be customized for different contacts and applications.

Data sheet (PDF) Request now

Build your tool solution

All individual parts can be precisely matched to your requirements and combined to create a customized repair or maintenance solution.

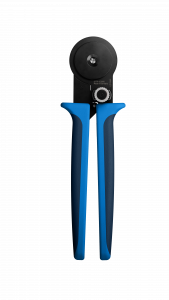

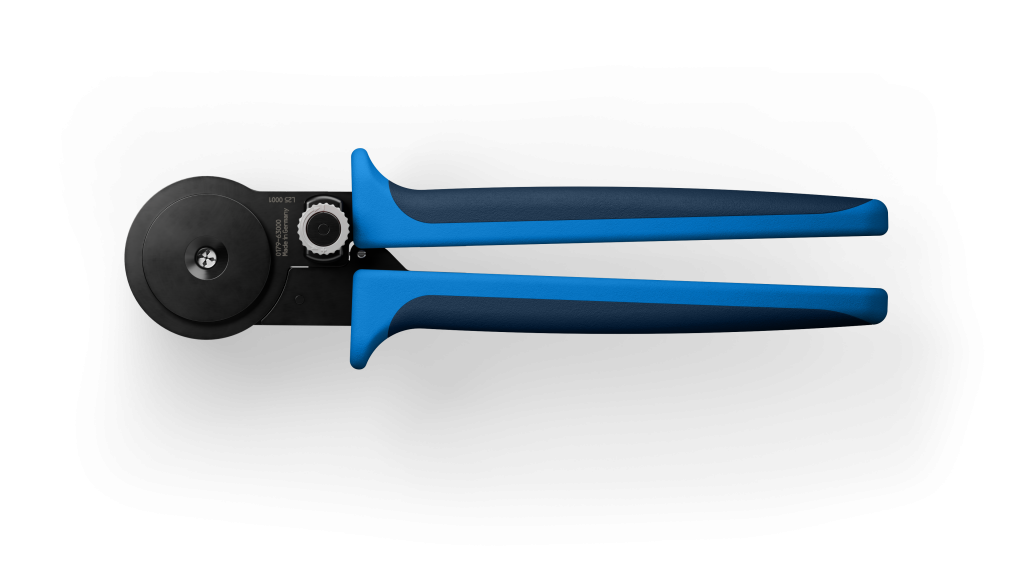

Indent Crimping tool CS 8

Compatible with machined terminals Amphenol Series AT:

#AT60-202-20141
#AT62-201-20141
#AT60-202-16141
#AT62-201-16141
#AT60-204-12141
#AT62-203-12141

CS 8 for your application

Choose from existing CS 8 solutions or let us adapt one to your requirements

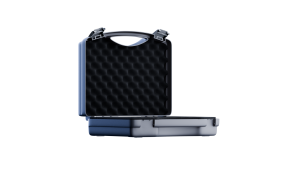

Toolkit Solution

Built around your application

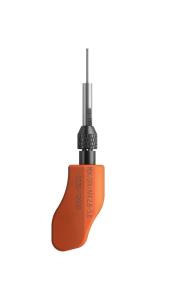

Extraction Tool

For the precise removal of your contacts from the housing

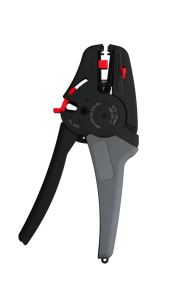

Stripping Tool

For reliable cable preparation

Request a bundle

Features

This tool is made for these applications

Different contact sizes for machined pin and socket contacts
Various machined round connectors conforming to MIL or equivalent standards

That is particularly

8-indent for precise crimping results. Four crimpers, each with two crimping points, produce a uniform crimp pattern.
Take advantage of our existing tool options. Just let us know your processing requirements, and we'll check which solution is already available for that.
Or we can develop a solution for you. We’ll customize the crimp profile and positioner to fit your contact and meet your requirements.
8-indent or four-prong? Both are possible. Depending on the application, we can configure the four crimpers with double embossing or as a four-prong version.
Fine adjustment in 0.01-mm increments. Use the analog scale to adjust the crimp height continuously. The locking mechanism prevents your setting from being accidentally changed.
Your contact is positioned just right. The positioner reliably moves it into the correct position for the crimping process.
If you'd like, we can also provide a complete tool kit right away. Supplement your crimping tool with matching release and wire-stripping tools, selected specifically for your application.

These functions make crimping more convenient

Tool lies comfortably in the hand thanks to soft handles with anti-slip protection.

Further advantages offered by our Made in Germany standard

The integrated guide makes the replacement of tool heads fast, error-free and always delivers reliable crimping results.
Always a compliant crimp - the positive lock ensures this. Can be unlocked in the event of incorrect operation.
Manufactured from special steel, specially hardened and tempered parts - quality that lasts.
No unnecessary play within the individual parts thanks to precise manufacturing, resulting in maximum reliability.
Tool is optimally set at the factory. It is not possible or necessary to adjust the crimping force.

Your strong trademark

WEZAG handtools are available exclusively as white label products. No additional competition from us as a manufacturer's brand!
Handle colors can be customized. Choose the right color from our standard color range.
Customizable lettering. With your logo and other information such as item number and name.
All products are "Made in Germany".

FAQs

Who is our range aimed at?

Our range is aimed at dealers with their own brand or who wish to establish one, as well as OEMs who wish to sell high-quality cable processing tools under their own name.

Are the tools available from stock?

No. As we only produce private labels, we manufacture to order. Entirely according to your requirements and without stock of finished products.

What are the purchase quantities?

The minimum order quantity usually starts at 10 pieces per item. This may vary slightly depending on the product type and degree of customization. Please contact us.

Can I also order the products without a label?

Yes. You decide how your product is delivered: neutral, with your logo, with individual packaging or completely reduced. Just as it suits your brand image.

Do you also support the development of a private label?

Yes. If you wish, we can support you right from the start. With suitable product suggestions, customization options and expertise from over 76 years of experience.

What customization options are available?

From laser marking to customized packaging, we offer various options for marking and brand presentation. Together we can design your dream tool.

How long are the delivery times?

As we manufacture to order, the delivery time depends on the scope and degree of customization. As a rule, it is 6-8 weeks after approval.

Where are the products manufactured?

Our tools are produced exclusively in our factory in Germany – with the highest standards of precision, quality and function.

Is there sales support?

Yes. With our crimping academy, we can train your team in the use of our tools on request, for a confident sales appearance. We are also happy to help you with your trade fair activities.

Can I also buy your tools as an end customer?

Our products are available from our private label partners. However, if you are looking for a specific tool, we will be happy to help you and provide you with suitable sources of supply.
